Our range of Ruby Body Panels and Parts is expanding rapidly. If an item is not shown, please contact us. We are adding new products to our range all of the time.
All prices correct at time of publication, but subject to change without notice.

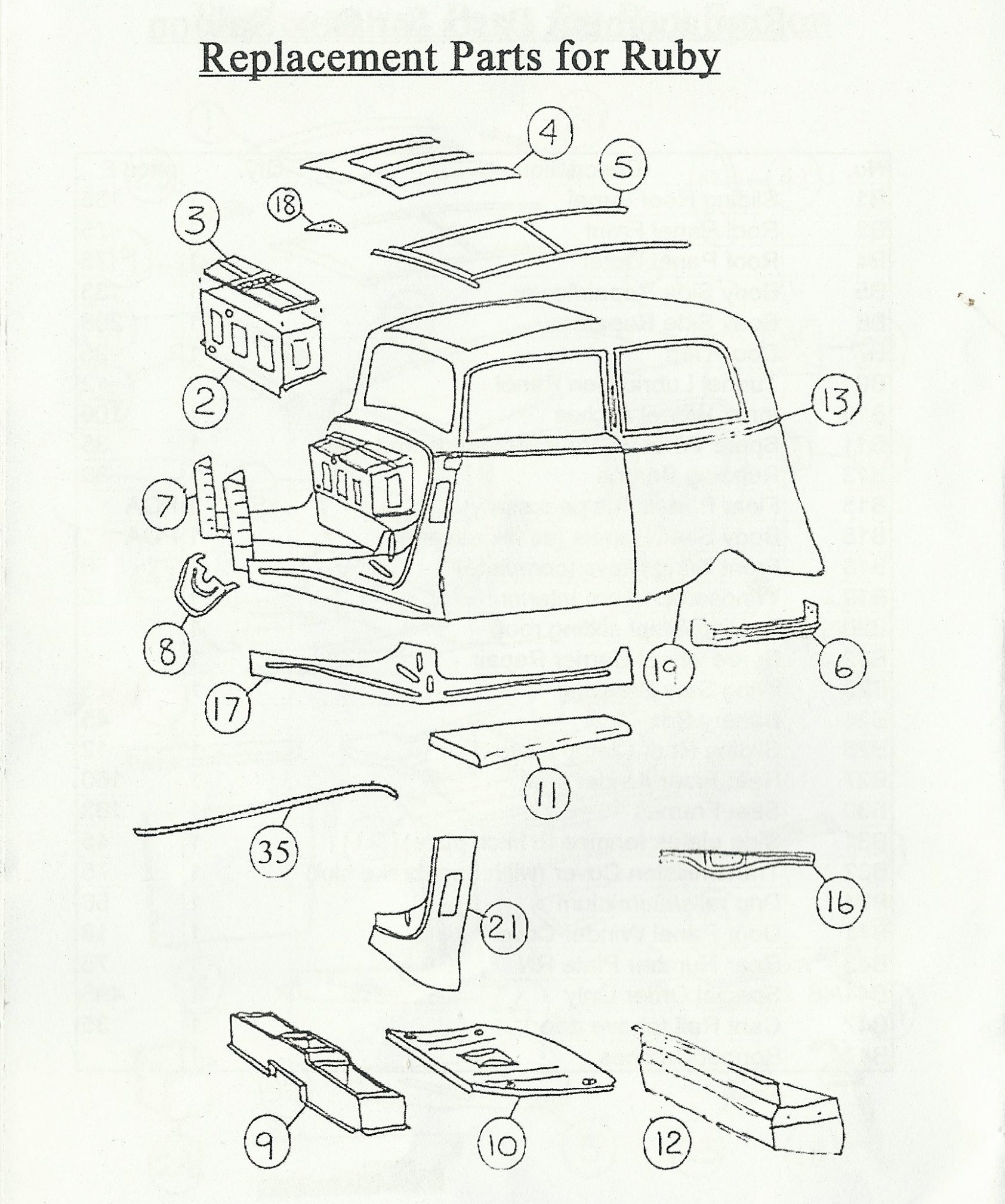

Prices below parts diagram.
 |
R2 | Battery Box/Tool Box | Each | £110.00 | |
R3 | Lids and Hinges - for above | Each | £65.00 | |
R4 | Sliding Roof Panel | Each | £135.00 | |
R6 | Side Window Drip Channel | Each | £50.00 | |
R7 | Radiator Side Panels | Pair | Handed | £45.00 |
R8 | Radiator Bottom Panel - (MK1/RAD - MK2/RAD) | Each | £60.00 | |
R9 | Seat Support Box - MK1/MK2 | Each | £190.00 | |
R11 | Running Boards | Each | Handed | £40.00 |
R13 | Under Rear Tunnel Stiffener | £70.00 | ||
R16 | Door Top Trim - (MK1) | Each | Handed | £50.00 |
R17 | Side Sill | Each | Handed | £35.00 |
R28 | Wing Stay to Headlight - (under wing- pressing only) | Each | £25.00 | |
R35 | Drip Rail - (Aluminium) | Pair | £75.00 | |
R36 | Bonnet Catches (Set of 4) | Set | £80.00 | |
R37 | Window Winder to glass channel - (front) | Each | £12.00 | |
R38 | Window Winder to glass channel - (rear) | Each | £12.00 | |
R40 | Drivers Floor Part (Fixes to Gearbox Cover) | Each | £20.00 | |
R41 | Front Floor Cover (with Cut outs For Pedals Toe Plate) | Each | £25.00 | |
R43 | Van Number Plate (Wider Part Along Top) | Each | £15.00 | |
R44 | Van Number Plate (Pointed Ends) | Each | £20.00 | |
R47 | Door Pillar Trim (Inside of Trafficators) | Each | Handed | £30.00 |
R50 | Side Cill Floor Pan | Each | POA | |
R55 | Floor Fillet /Spring Cover | Each | £40.00 | |
R56 | "B" post Stiffener by Spring Cover | Each | £30.00 | |
R57 | Rear Corner Stiffener | Each | Handed | £40.00 |
R64 | Top Angle for Front of Rear seat | Each | £20.00 | |
R65 | Window Winder Cover | Each | £25.00 | |
R66 | Floor | Each | Handed | £110.00 |
R67 | Floor Upright Rear | Each | Handed | £95.00 |
